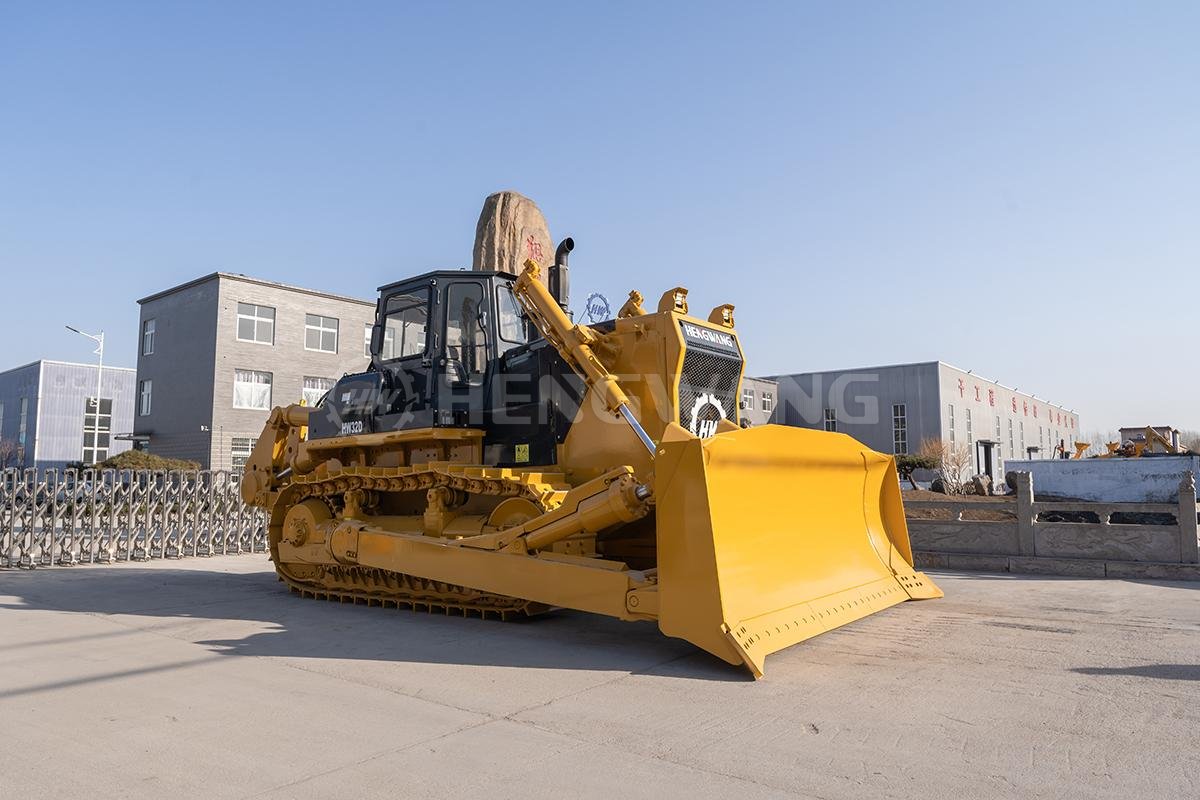

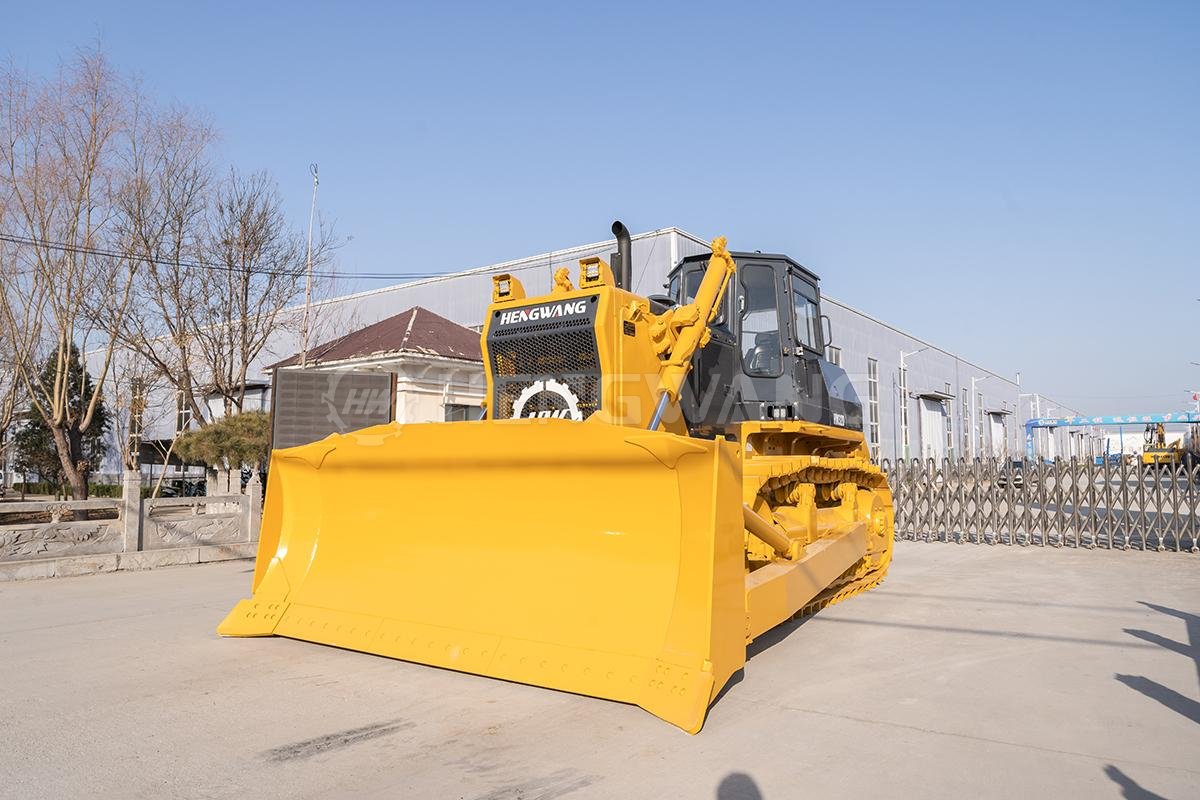

| 320 Horsepower Bulldozer Performance Parameters | |||
| Model | HW32D | ||
| Performance Parameters | Operating Weight (kg) (excluding ripper) | 37200 | |
| Minimum Turning Radius (mm) | 3.8 | ||
| Ground Contact Length (mm) | 3150 | ||
| Ground Pressure (kpa) | 0.105 | ||
| Engine | Engine Model | NTA855-C360S10 | |
| Power/Speed (Kw/rpm) | 257/2000 | ||
| Dimensions | Overall Dimensions (mm) | 6680×4130×3688 | |
| Travel Performance | Forward Speed (km/h) | F1:0~3.6 | |
| F2:0~6.6 | |||
| F3:0~13.5 | |||
| Reverse Speed (km/h) | R1: 0~4.4 | ||
| R2: 0~7.8 | |||
| R3: 0~13.5 | |||
| Chassis System | Ground Clearance (mm) | 500 | |
| Track Center Distance (mm) | 2140 | ||
| Track Width (mm) | 560 | ||
| Number of Track Plates (per side) | 41 | ||
| Pitch (mm) | 228.6 | ||
| Number of Rollers (per side) | 2 | ||
| Number of Support Rollers (per side) | 7 | ||
| Fuel Tank Capacity | Fuel Tank (L) | 640 | |
| Hydraulic Tank (L) | 164 | ||
| Working Device | Blade | Blade Types | Straight Tilt Blade / Angle Blade / Semi-U Blade |
| Blade Capacity (m³) | 10/6/11.9 | ||
| Blade Weight (kg) | 4520/4855/4868 | ||
| Blade Width (mm) | 4130/5000/4030 | ||
| Blade Height (mm) | 1590/1140/1725 | ||
| Maximum Lifting Height (mm) | 1560/1703/1560 | ||
| Maximum Cutting Depth (mm) | 560/630/560 | ||

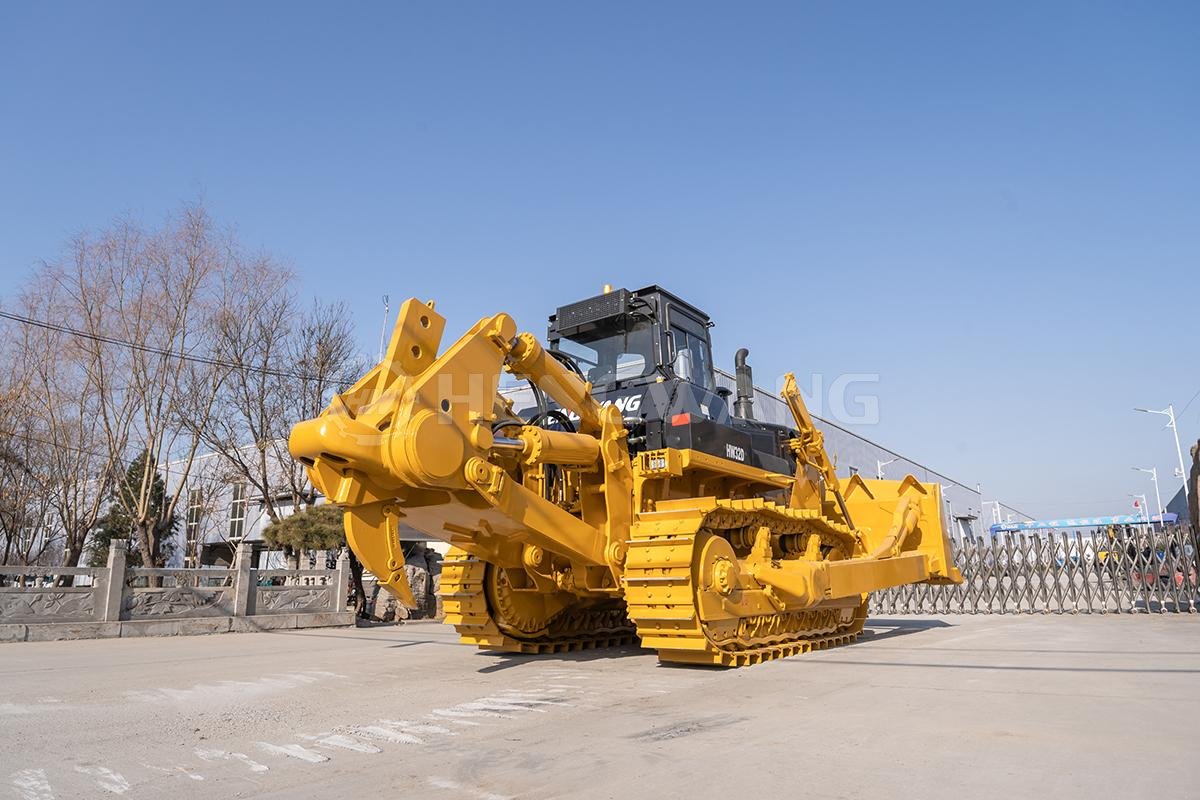

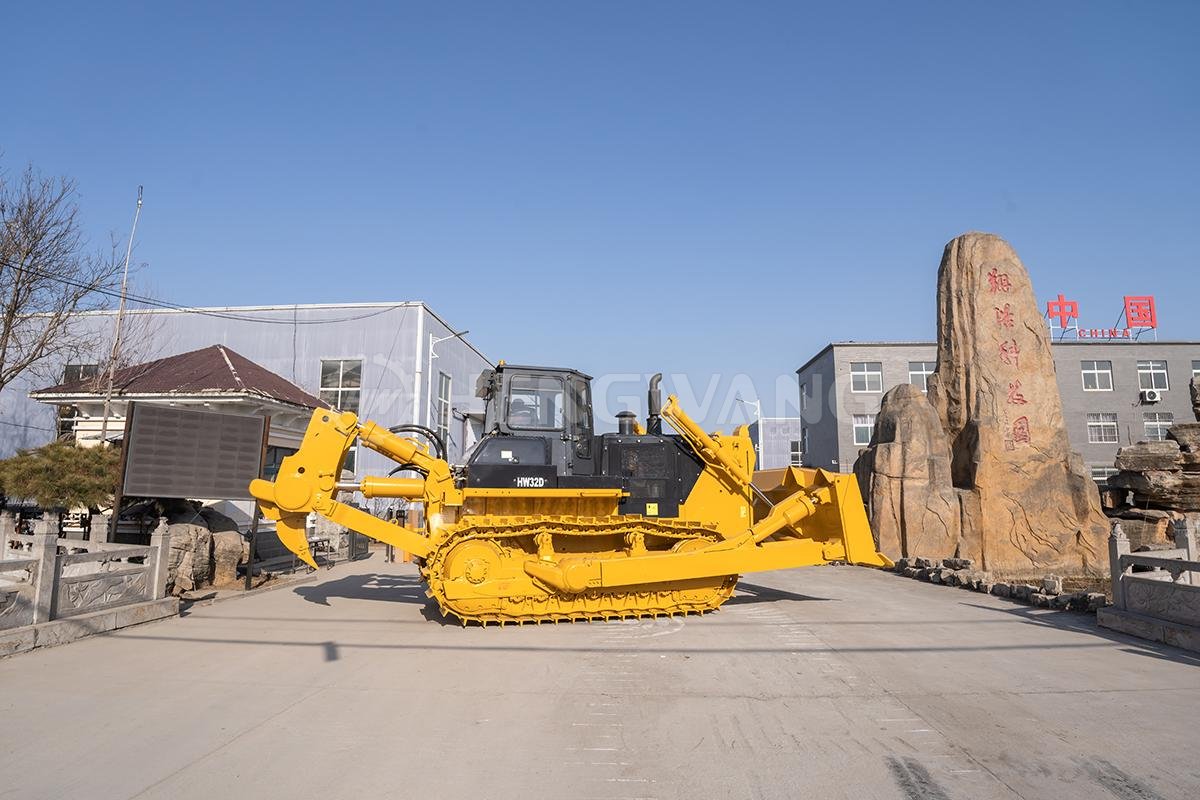

| Ripper | Ripper Types | Single Tooth / Three Teeth | |
| Ripper Weight (kg) | 4260/4800 | ||
| Maximum Ripping Depth (mm) | 1250/842 | ||
| Maximum Lifting Height (mm) | 955/883 | ||
| Winch | Winch Types | / | |
| Hydraulic Motor Model | / | ||
| System Pressure (mpa) | / | ||
| First Layer Maximum Pressure (KN) | / | ||
| First Layer Maximum Line Speed (m/min) | / | ||
| Number of Layers | / | ||
| Wire Rope Size (mm) | / | ||
